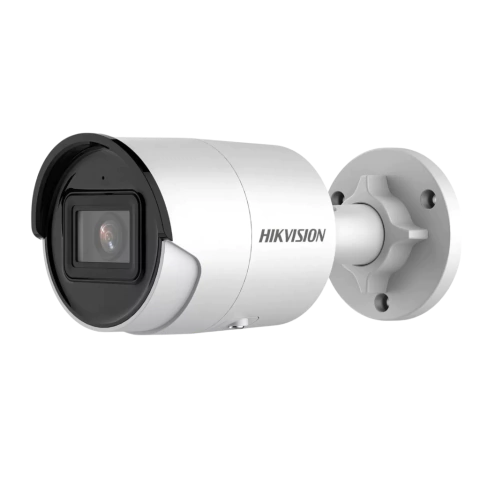

CAMERA IA HIKVISION 4MP DS-2CD2043G2-I
Modelo: DS-2CD2043G2-I(2.8mm)
-Marca: Hikvision
Câmera
Sensor De Imagem:1/3 Progressive Scan CMOS
Resolução Máx.: 2688 × 1520
Iluminação Mínima: Color: 0.005 Lux (F1.6, AGC ON), B W: 0 Lux with IR
Tempo Do Obturador: 1/3 s to 1/100,000 s
Dia E Noite: IR cut filter
Ajuste De Ângulo: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Rentes
Focal Length FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
Tipo De Lente: Fixed focal lens, 2.8mm optional
Montagem Da Lente: M12
Abertura: F1.6
Iris Type: Fixed
DORI
DORI: 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
Luminador
Faixa De Luz Suplementar: Up to 40 m
Tipo De Luz Suplementar: IR
IR Wavelength: 850 nm
Luz Complementar Inteligente: Yes
Vídeo
Convencional
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Subfluxo
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Transmissão Terciária
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Compressão De Vídeo
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Taxa De Bits De Vídeo
32 Kbps to 8 Mbps
Tipo H.264
Baseline Profile/Main Profile/High Profile
Tipo H.265
Main Profile
Rede
Protocolos:
TCP/IP, ICMP, http, https, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Visualização Ao Vivo Simultânea:
Up to 6 channels
API:
Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Usuário/Host:
Up to 32 users. 3 user levels: administrator, operator and user
Segurança:
Password protection, complicated password, https encryption, IP address filter, Security Audit Log, basic and digest authentication for http/https, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Armazenamento De Rede:
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client: iVMS-4200, Hik-Connect, Hik-Central
Navegador Da Web:
Plug-in required live view: IE 10, IE 11
Imagem:
Interruptor De Parâmetros De Imagem: Yes
Image Settings:
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Switch Dia/Noite:
Day, Night, Auto, Schedule
Ampla Faixa Dinâmica (WDR)
120 dB
Aprimoramento Da Imagem
BLC, HLC, 3D DNR
SNR
52 dB
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Armazenamento A Bordo
Built-in memory card slot, support microSD card, up to 512 GB
-U: Yes
Reset Key
Yes
Evento
Eventos Básicos
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Evento Inteligente
Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)
Face detection
Geral
Alimentação
12 VDC 25%, 0.5 A, max. 6 W, 5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W
Condições De Armazenamento
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condições De Inicialização E Operação
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Função Geral
Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Idioma
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech,
Aprovação
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Segurança
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Ambiente
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Proteção
IP67 (IEC 60529-2013)
